隧道爐（tunnel furnace;Tunnel Oven）集中加熱，熱風循環

連續加熱干燥設備，鏈板傳輸方式

1、十年來經過逐步優化設計，改進保溫結構，加厚隔熱材料，降低傳熱系數。

------ 盡可能減少熱能損失。

 2、采用獨立加熱箱，集中式加熱，獨立熱風輸送風道，獨立回風輸送管道設計，每小段都設有風量調節裝置，
     優點是10幾米長的隧道爐內部整體溫度都很均勻。

     采用PID控溫模式，電力調節器控制加熱模組，既控溫精度高，又能延長電器使用壽命

      設定溫度：室溫+10度到200度

------內膽溫度均勻（ ±3℃ ）

 3、強力風循環—

------利于產品充分加熱

 4、動力式鏈板設計--產品在烘烤過程平穩走動，承重能力也強

------保持產品水平移動，避免固化膠在未固化時淌膠的現象。

 5、動力速度可調，1-8m/s，用戶可根據產品的大小情況自己設定合適的烘烤時間

------提高單位時間成品率。

 6、烤爐長度根據客戶產能可以設計6米、8米或10幾米，長度、寬度可定制。

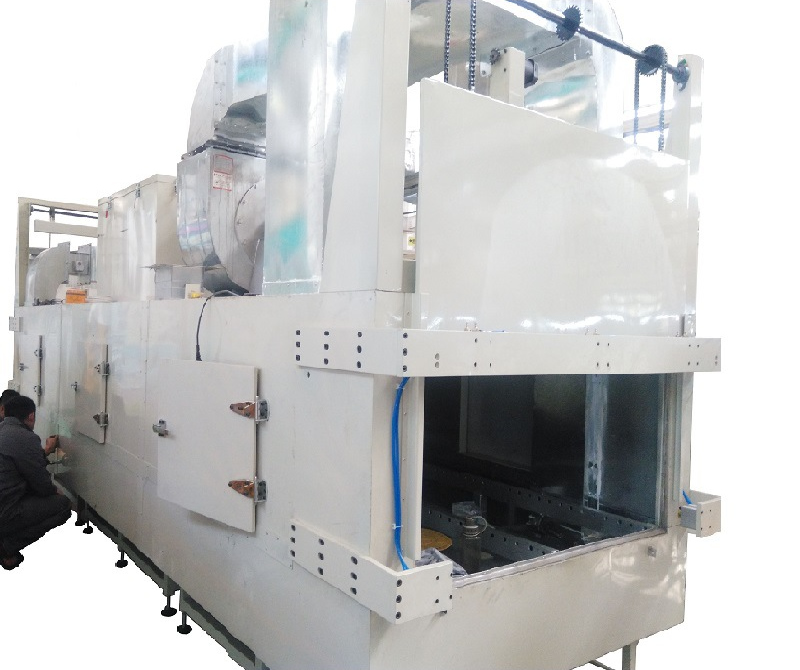

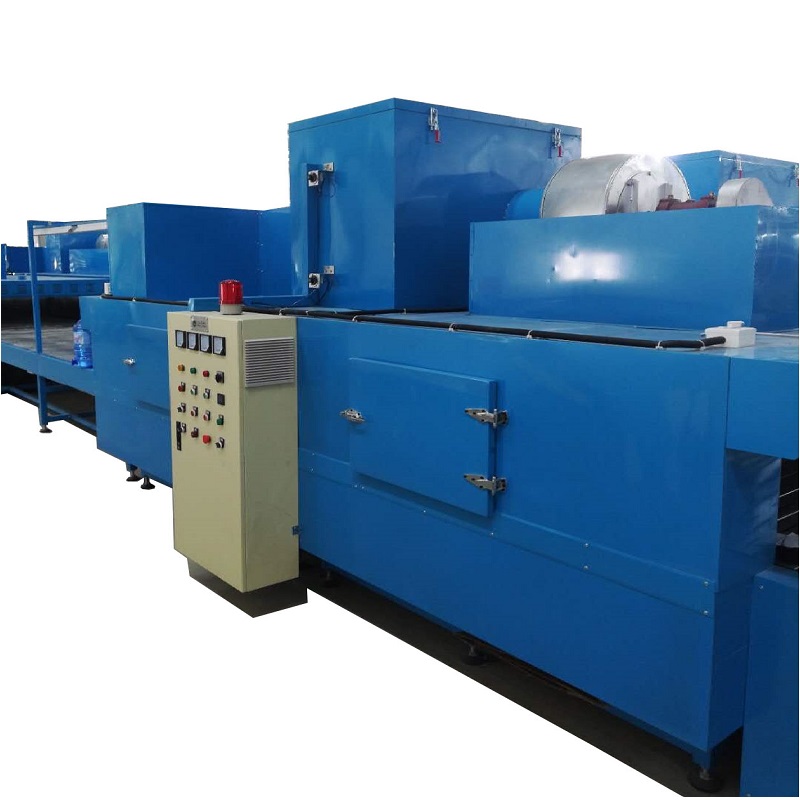

          Tunnel Furnace   (Tunnel Oven)

Centralized Heating and Hot Air Circulation: Continuous heating and drying equipment with chain plate transmission.

1. Optimized Design Over Ten Years:
   - The design has been gradually optimized over the past ten years, improving insulation structures and increasing the thickness of insulating materials to reduce the heat transfer coefficient.
   - This helps to minimize heat loss as much as possible.

2. Independent Heating Chambers:
   - Independent heating chambers with centralized heating, independent hot air supply ducts, and independent exhaust ducts are used.
   - Each section is equipped with airflow adjustment devices, ensuring uniform temperature throughout the entire length of the tunnel furnace, even for units over 10 meters long.
   - PID temperature control mode with a power regulator to control heating modules, providing high temperature control accuracy and prolonging the life of electrical components.
   - Settable temperature range: Room temperature + 10°C to 200°C.
   - Uniform internal temperature (±3°C).

3. Strong Air Circulation:
   - Facilitates thorough heating of the products.

4. Powerful Chain Plate Design:
   - Ensures smooth movement of products during baking, with strong load-bearing capacity.
   - Keeps products moving horizontally to prevent dripping of uncured adhesive.

5. Adjustable Speed:
   - Speed adjustable from 1-8 m/s, allowing users to set the appropriate baking time based on the size of the product.
   - Improves the output rate per unit time.

6. Customizable Length and Width:
   - The length of the oven can be designed to be 6 meters, 8 meters, or over 10 meters based on the customer's production capacity.
   - Both length and width can be customized.
